Phlebotinum

Phlebotinum is an interactive fiction system based on SHLURD.

It is similar to Inform 7 in that a limited form of natural language is used for authoring stories. It is different in that the same natural language is used while interpreting stories as well. Phlebotinum uses WordNet 3.1 to assist it in automatically recognizing usage of nouns, verbs, adjectives, and adverbs during parsing. Currently, only the English language is supported, but the underlying frameworks are designed with an eye towards eventual polyglot capabilities.

A Rather Short Story

play here
if you get stuck, there’s a walkthrough
see source code (but hey, make sure you try playing it first!)

Story Organization

A story is created as a collection of files:

Base axioms define the ontology of the game world. This is the shared base of reality for all characters in the game. The corresponding file must be named base-axioms.txt.
Game initialization is the fiat lux which populates the world and situates the characters which inhabit it. The corresponding file must be named game-init.txt. Game initialization also sets up the world’s behavior, as seen in the behavior axioms from the example story.
Capability axioms define the actions understood by the interpreter in terms of character capabilities
Character mind initialization is used to bring the private mental world of the player character to life (and possibly that of non-player characters as well, such as the child from the example story). At a minimum, in good self-help fashion, the player needs to believe in some capabilities, otherwise all actions will be prohibited.

A file may include the beliefs from other files via the Believe directive:

Believe "/phlebotinum/default-capability-axioms.txt".
Believe "/base-axioms.txt".

A person can climb a tree.
...

In the example above, the first Believe directive includes all the default capability axioms from the phlebotinum library, whereas the second directive includes the ontology axioms from the story currently being defined.

Redundant belief inclusions are automatically ignored.

A story can be broken up into as many files as desired, either for reuse or for organizational clarity. In the example, behavior axioms include a separate file defining the axioms regarding what happens when the player drinks love potion number 9.

You can develop and play your own stories too.

Minds, Worlds, and Perception

The objective reality of the game is the noumenal world.

Each game character may have a mind with an associated phenomenal world (what the character is aware of). A phenomenal world may be:

a simple subset of the noumenal world (based on what the character has encountered so far)
a subset of the noumenal world, plus an imagined superset (private beliefs, hallucinations, etc); this variant is not well supported yet
a totally private world independent of the noumenal world
a direct access to the noumenal world (meaning the character is omniscient)

When a character encounters an object in the noumenal world, the object becomes a perceived part of the character’s phenomenal world. So at any time, an object may have one of the following states with respect to a character’s mind:

unknown (the character has not encountered it yet, or it has been completely removed from the character’s awareness)
fresh (the character is currently perceiving it for the first time)
familiar (the character is currently perceiving it, but was already aware of it)
stale (the character has encountered it, but is not currently perceiving it)

Characters need not be burdened with a mind if it would serve no purpose; this is the case for Amy in the example story.

Game Turns

Each input sentence entered by the player corresponds to one game turn. A game turn proceeds roughly as follows:

New game turn starts
All previously perceived objects become stale for all characters
For each character, all objects currently in scope (based on the character’s location, possessions, and sensory awareness) become either fresh (if encountered for the first time) or familiar (if previously encountered)
The sentence is interpreted with respect to the player character’s phenomenal world (including the player’s capabilities)
If any interpretation errors are encountered, the game turn ends with a failure message; otherwise, if the sentence is a statement or question, it is evaluated and an appropriate response is reported
If the sentence is a command, it is re-processed with respect to the noumenal world; this may lead to errors based on failed preconditions or other constraints; it may also lead to triggered actions (which may themselves trigger errors or other actions recursively)
If any errors were encountered during processing, the effects of all triggered actions are ignored, and the game turn ends with a failure message
Otherwise, the noumenal world state is updated, the game turn ends successfully, and all perceptible action effects are reported

Containment and Possession

The containment model is currently very basic: objects can contain other objects recursively, but there is not yet any notion of supporter, transparency, etc. Locations are objects, and they contain whatever is present in them (including characters).

Each character has an associated inventory, a.k.a. stuff (which is itself a kind of object so that it can contain other things). So if a character is holding a lantern, the lantern is not directly inside of the character (ouch!); instead, it is in the character’s stuff. Getting an object moves it from a location to the character’s stuff, and the opposite is true for dropping an object.

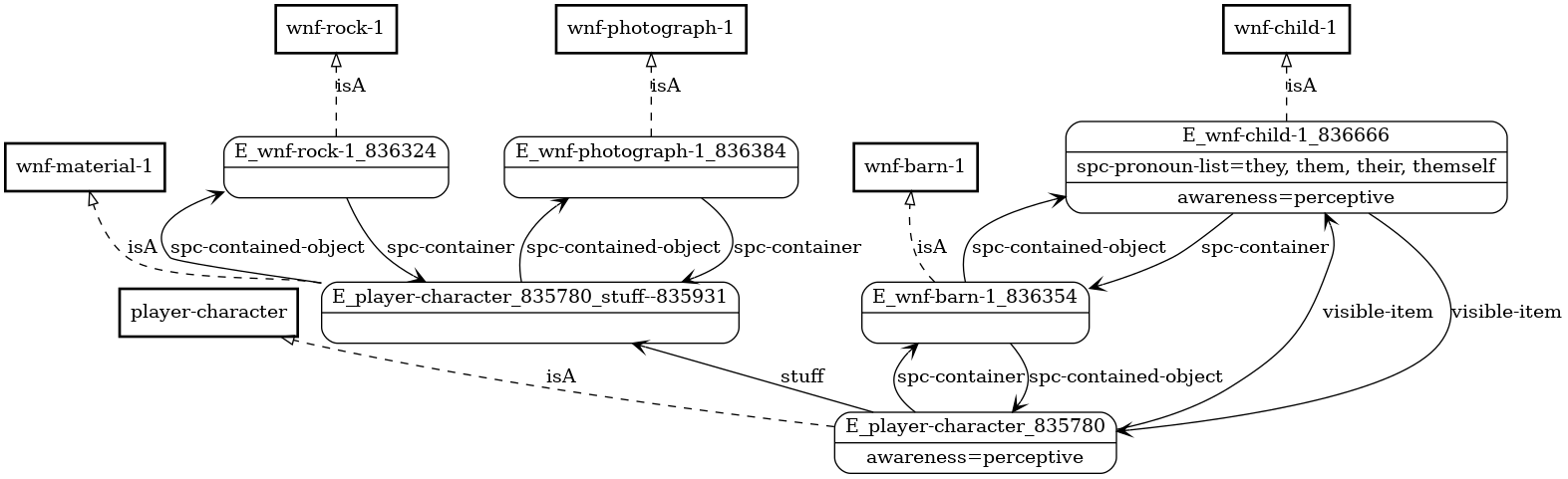

In the example story, here’s how this looks after getting the rock and moving to the barn:

Maps

The game axiom library supplies a fairly standard map representation:

the eight compass directions (N/S/E/W/NW/SW/NE/SE) plus the two vertical directions (zenith and nadir) are singleton map-direction objects (e.g. “the north”), each of which has an opposite direction
locations are represented by map-places
map-places are linked by one-directional map-connections, each of which has a source-place and a target-place; conversely, map-places have map-connections as their place-exits (outgoing connections) and place-entrances (incoming connections)
a standard straight-connection type is defined (e.g. a passage from east to west), but custom types (e.g. elbow-shaped passages) can be defined as well
since most passages between places are bidirectional, a map-connection is typically associated with an opposite-connection
map-portals (including doors, passages, etc) are objects which mediate map-connections; for a bidirectional passage, typically the same map-portal object is associated with the two opposing map-connections

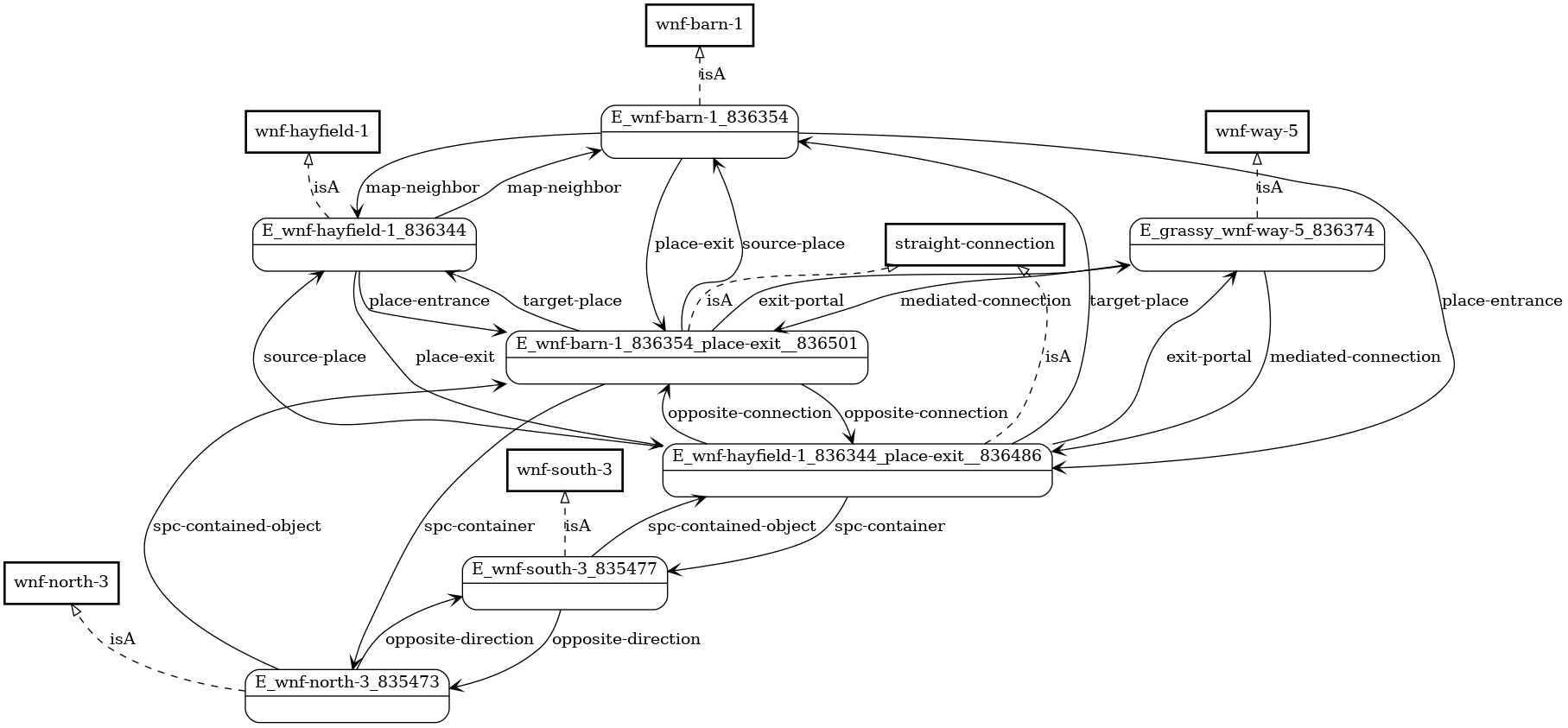

Let’s take a look at the pathway from the meadow to the barn in the example story:

Whew! There’s a lot going on here:

The actual map locations are the meadow (aka “hayfield”) and the barn
The map connections are the place exits.
The singleton compass directions (north and south) are the containers for the place exits, indicating the direction in which an exit leads
Finally the grassy path object (aka “grassy way”) is the portal which mediates these connections.

Movement

for direction-based movement (e.g. go north), the player character’s current location must have a place-exit in the corresponding direction
for location-based movement (e.g. go to the kitchen), the destination must be a known neighbor of the current location
for object-based movement (e.g. enter the oven), the destination object must not be stale (and must in fact be a location)
for any type of movement, if there is a door or other portal mediating the map-connection, the portal must not be closed

Visibility

The phlebotinum library provides a default implementation of object visibility. Each game character has an associated set of visible-items, and this set is maintained automatically as the character moves around, interacts with objects, etc. Typically, all visible items will have been perceived by the character, but not all perceived items are necessarily visible. For example, by default the character perceives held items, but does not see them.

Visible items must inherit the form visible-entity, which is divided into visible-objects (things that you can probably pick up), and visible-fixtures (things you probably can’t, such as doors). By default, when describing a map place, the interpreter answers the questions “which visible-objects do I see?” and “which visible-fixtures do I see?”

The library defines an equivalance so that anything a character can see is one of the character’s visible items, and vice versa.

Internally, the library uses the verb observe to combine the act of seeing with perception. Custom game rules can be defined in order to cause additional side effects when objects are observed.

The library uses the verb survey for the act of taking in a map place. By default, when a character surveys a place, the character observes everything in it, including entrances, exits, and associated portals such as doors.

Typically, characters don’t automatically observe the possessions carried by others. This behavior could be modified with a rule such as:

Whenever a thief observes a game-character,
 the thief observes the game-character's stuff;
 also the thief observes the game-character's stuff's contained-objects.

There is not yet support for other sensory modalities such as hearing.

The Player Character

The player character is a unique character from whose perspective the game is played. By default, the player character is anonymous and genderless. The identification between the player and the player character is currently one-to-one and immutable; these restrictions may be relaxed in future releases.

By default, the player character has the following attributes (explained in other sections of this document):

phenomenal world
current location
possessions
visible items

A game may give the player character additional attributes such as description, name, gender, etc.

Non-Player Characters

A game may define any number of non-player characters, and it’s possible for a new NPC to come into existence after the game has started.

An NPC has the same default attributes (e.g. location and possessions) as a player character. NPC’s will typically have a gender also, and sometimes preferred pronouns as well.

Besides defining the behavior of an NPC, a game may also specify what each NPC perceives as events occur. As in countless science fiction novels, NPC initialization may also involve perceiving out-of-scope objects in order to construct memories. This allows for appropriate responses to be delivered automatically during interactions with the player character. In the example game, there’s a hidden sprite; the interpreter is aware of its existence, but initially only the child knows its location:

> is there a sprite

Yes, there is a sprite.

> where is the sprite

I don't know.

> s

OK.

You are in a barn.

You see a child.

You see the grassy path to the north.

> talk to the child

OK.

(You are now in conversation.  Say TTYL to stop.)

> is there a sprite

"Yes, there is a sprite."

> where is the sprite

"Zzz is in the hayloft."

> TTYL

(You are no longer in conversation.)

> u

OK.

You are in a hayloft.

You see the sprite and a rooster.

> where is the sprite

Zzz is in the hayloft.

Once the sprite has been encountered, the player character becomes aware of its location (as does the interpreter).

Moreover, interactions with the player may result in updates to an NPC’s perception:

> i

You are holding the photograph.

> x photo

OK.

A photo of your wife, but her face is blurred.

> s

OK.

You are in a barn.

You see a child.

You see the grassy path to the north.

> ask the child "what am I holding"

OK.

They respond, "You are holding nothing."

> show child the photo

OK.

"Aw, you must love 'er."

> ask the child "what am I holding"

OK.

They respond, "You are holding the photo."

Some objects may exist only in an NPC’s mind:

> is there a mouse

I don't know.

> who is the mouse

But I don't know about any such mouse.

> s

OK.

You are in a barn.

You see a child.

You see the grassy path to the north.

> talk to the child

OK.

(You are now in conversation.  Say TTYL to stop.)

> is there a mouse

"Yes, there is a mouse."

> who is the mouse

"It is Frederick."

> where is Frederick

"I don't know."

The child’s mind initialization defines Frederick, so the existence of the mouse can only ever be in the child’s mind, making it inaccessible to the interpreter.

However, due to the child being a perceptive character, there are currently many limitations on this feature (let’s just say it’s technically challenging to maintain a consistent overlap between the noumenal and phenomenal worlds as they evolve). For example, defining the mouse as the child’s pet won’t work correctly.

For some characters, you may be able to solve this by making them unperceptive instead:

> u

OK.

You are in the tree.

You are sitting on a thick branch a few feet above the ground.

You see a hen and the cloud.

> ask the hen "where are you"

OK.

She responds, "I am in an invisible nest."

> get the hen

OK.

> d

OK.

You are in the meadow.

You see the tree, the rock, and the cloud.

You see the grassy path to the south.

> ask the hen "where are you"

OK.

She responds, "I am in an invisible nest."

The hen’s world is defined entirely by its mind initialization, so it is unaware of the real world around it. This allows you to fill in any alternate reality desired, including associations:

> u

OK.

You are in the tree.

You are sitting on a thick branch a few feet above the ground.

You see a hen and the cloud.

> talk to the hen

OK.

(You are now in conversation.  Say TTYL to stop.)

> who are you

"I am the hen."

> who is your mate

"My mate is a rooster."

> where is the rooster

"He is in a hayloft."

Finally, let’s take a look at the mind of an omniscient character (the sprite):

> s

OK.

You are in a barn.

You see a child.

You see the grassy path to the north.

> u

OK.

You are in a hayloft.

You see the sprite and a rooster.

> talk to the sprite

OK.

(You are now in conversation.  Say TTYL to stop.)

> who are you

"I am the sprite."

> who is my wife

"Your wife is Amy."

> where is my wife

"Your wife is in one of your memories."

> what is in the sky

"A cloud is in it."

The sprite, being omniscient, has access to the latest state of the entire world.

Regardless of mind type, all NPC’s are currently far along the spectrum, in that they are not capable of internally modeling the minds of other characters (although this can be simulated with a lot of effort).

Expressions For People and Objects

Special conditionals are supported for crafting how an NPC refers to entities in a game. From the example story:

When a child references a photograph,
 the child recites "the photo".

When a child references a player-character,
 the child recites "some oldster".

In the first case, the rule simply overrides the default terminology.

In the second case, the rule provides a way for the child to refer to the player character, whose name is unknown.

Rules such as these typically only need to be defined in the mind-init axioms for the relevant NPC, since they aren’t applicable to other characters. However, it’s also possible to apply them to all NPC’s across the board:

When a non-player-character references a coin,
 the non-player-character recites "the zorkmid".

In such cases, the rule should be defined in the general behavior axioms.

The Interpreter

Player input is normally processed by the (unique) game interpreter. The game interpreter is not a game character, yet is still a person, and serves as the default conversation partner for the player character. The game interpreter is defined to exist within the game world, but normally does not have an actual location.

> who am I

You are the player-character.

> who are you

I am the game-interpreter.

> where am I

You are in the meadow.

> where are you

I don't know.

On close examination, the conventions of interactive fiction for processing player utterances directed at the game interpreter are somewhat peculiar. For commands, the interpreter processes them as if the player character were in self-conversation. So, the command throw the rock is executed as if the statement the player-character throws the rock were being recorded as a new event in the history of the game world. Likewise, for questions or statements, phlebotinum’s interpreter responds based on the state of the player character’s own phenomenal world.

The game interpreter may also play a part in the cause and effect logic of the game world. Narrative output can be inserted by the game-interpreter says:

When a player-character examines a describable-entity,
 and its description does not exist,
 the game-interpreter says "It's about what you'd expect.".

This can also be done indirectly via the game-interpreter recites:

When a player-character examines a describable-entity,
 the game-interpreter recites its description.

The effect of an action may be prevented via the game-interpreter complains:

Before a game-character traverses a map-connection,
 its exit-portal must be open;
 otherwise the game-interpreter complains "But the door is not open.".

Such a complaint is treated seriously as a processing error, meaning that all other effects of the attempted command are undone. Don’t mess with the game interpreter!

Conversations

A modeless conversation with an NPC is mediated by the game interpreter:

> s

OK.

You are in a barn.

You see a child.

You see the grassy path to the north.

> ask the child "who am I"

OK.

They respond, "You are some oldster."

> say "follow me" to the child

OK.

They respond, "No."

> tell the child "I am your father"

OK.

They respond, "Oh, really?"

Some speech patterns are not yet supported:

Inform-style direct address appositions such as child, follow me
indirect speech such as ask the child about the photo or tell the child that I am their father

A conversation may instead be modal:

> s

OK.

You are in a barn.

You see a child.

You see the grassy path to the north.

> talk to the child

OK.

(You are now in conversation.  Say TTYL to stop.)

> where is my wife

"I don't know."

> what is in the barn

"I and some oldster are in it."

> I have some candy

"Oh, really?"

> take this photo

"No."

> TTYL

(You are no longer in conversation.)

> l

OK.

You are in the barn.

You see the child.

You see the grassy path to the north.

Normally, the player is “talking” to the game interpreter, but for the duration of a modal conversation, utterances are directed at an NPC instead.

When processing sentences, NPC’s evaluate them with respect to their own minds. Typically, an NPC’s private world will not match that of either the player or the game interpreter, so their responses will vary accordingly.

NPC’s respond to questions, but beyond that, responses are quite limited:

statements are confirmed if true; false or unverifiable statements are met with skepticism
statements never result in the NPC’s mental state being changed
all commands are curtly rejected

WordNet

The parser would like you to read about how it uses WordNet to recognize word usage, including how you can customize this for better handling of compounds words, proper nouns, etc. Further, it wants you to study its support for pronouns and gender.

In the example story, the child prefers the singular they, whereas the sprite has zrz very own pronouns. The interpreter is made aware so that it (and NPC’s) can recognize and respect these preferences:

> s

OK.

You are in a barn.

You see a child.

You see the grassy path to the north.

> where is the child

They are in the barn.

> who is their friend

No one is their friend.

> u

OK.

You are in a hayloft.

You see the sprite and a rooster.

> where is the sprite

Zzz is in the hayloft.

> who is the sprite's friend

No one is zrz friend.

> I am zrz friend

Oh, really?

Beyond identifying parts of speech, WordNet is also used as a builtin ontology, allowing you to instantiate forms, e.g. Amelia is a pilot, with automatic inference that Amelia is also an aviator, a person, etc.

In the example story, no rules say anything about birds, but the interpreter still knows that chickens are birds:

> climb the tree

OK.

You are in the tree.

You are sitting on a thick branch a few feet above the ground.

You see a hen and the cloud.

> is the hen a bird

Yes, she is a bird.

> is the hen a dog

No, she is not a dog.

Internals

Debugging can be a good way to understand more of what’s going on under the hood.

This site is open source. Improve this page.
